Boss / BF-2 Flanger (Green Label) / 1980's / Purple / Effect For Sale
|

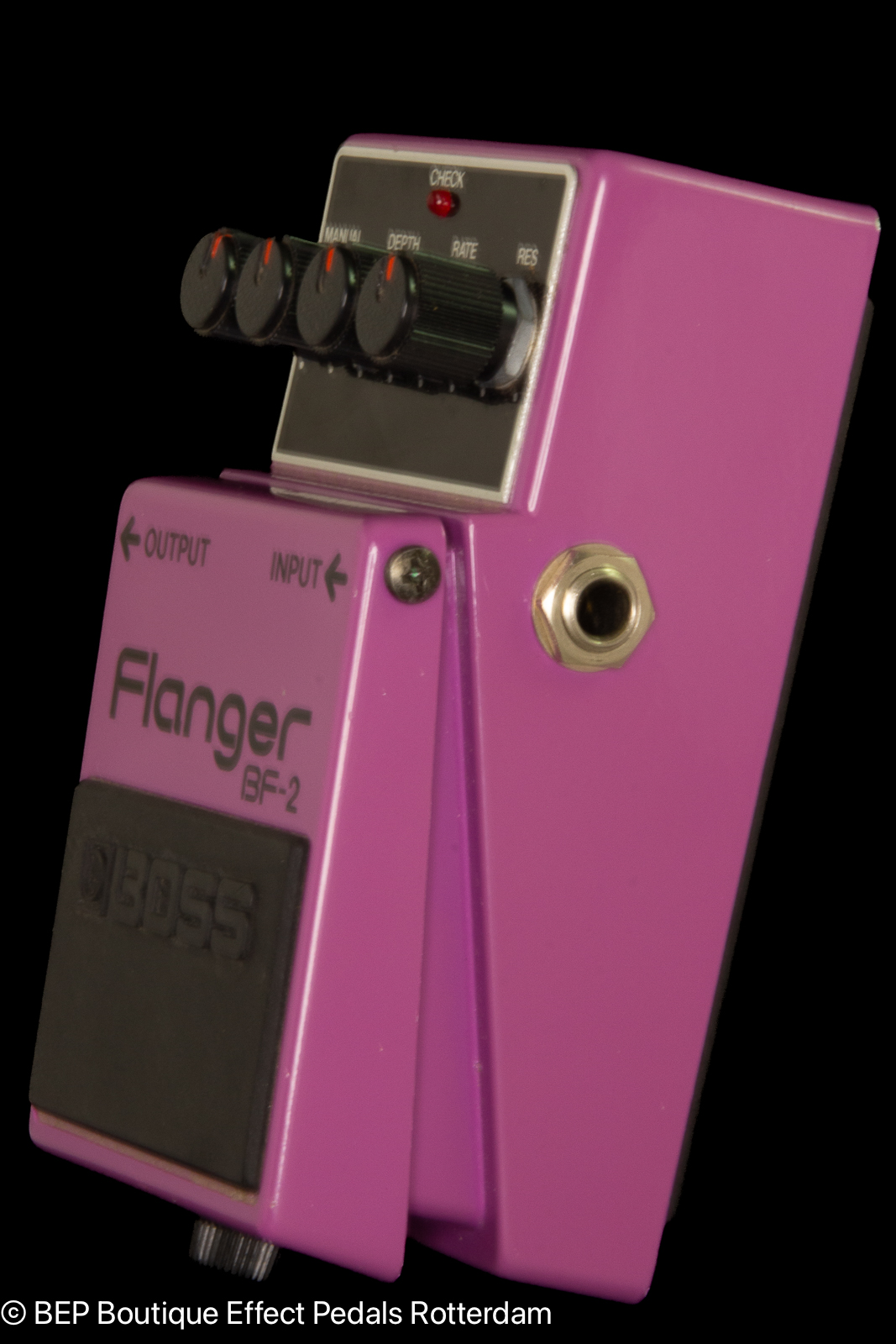

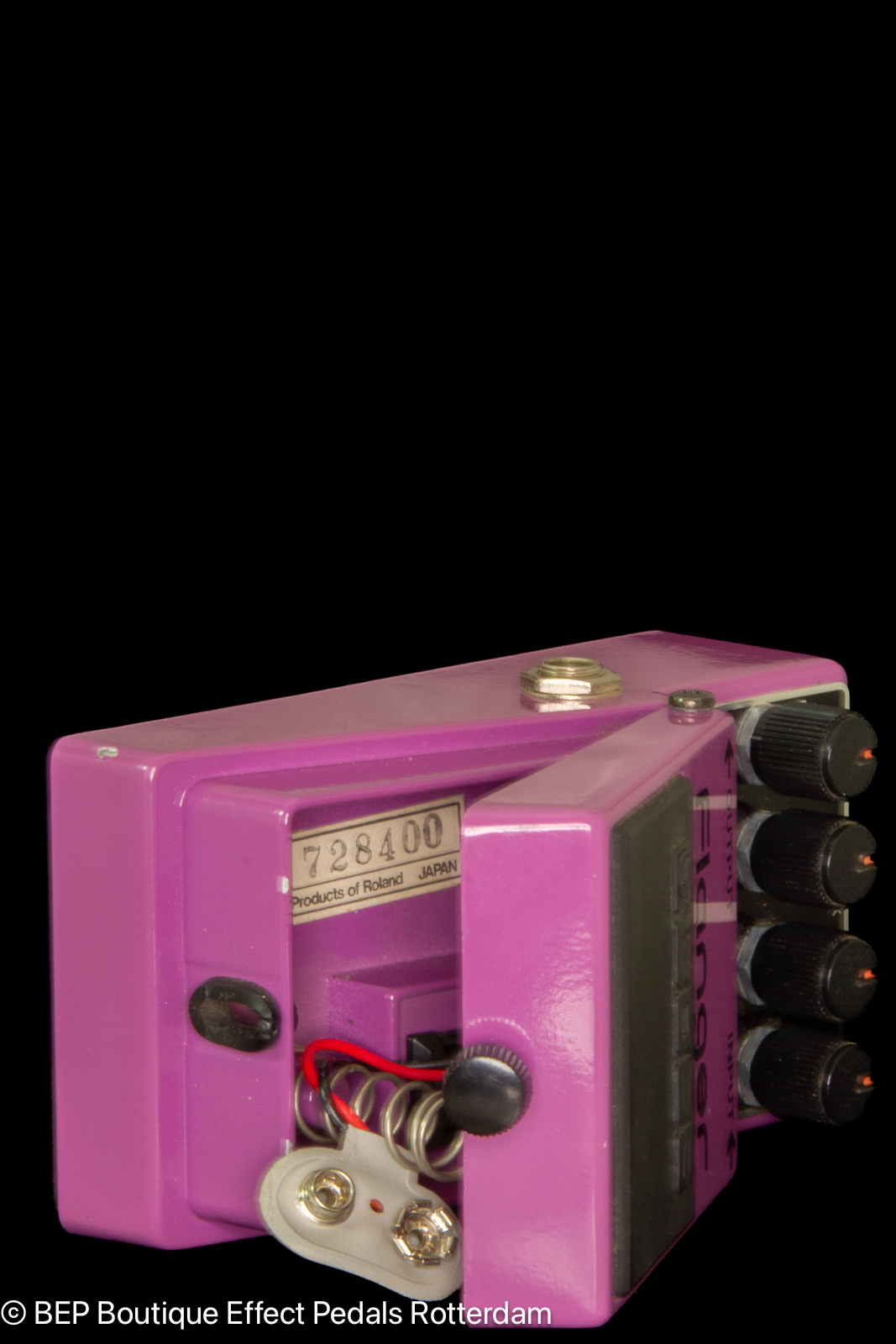

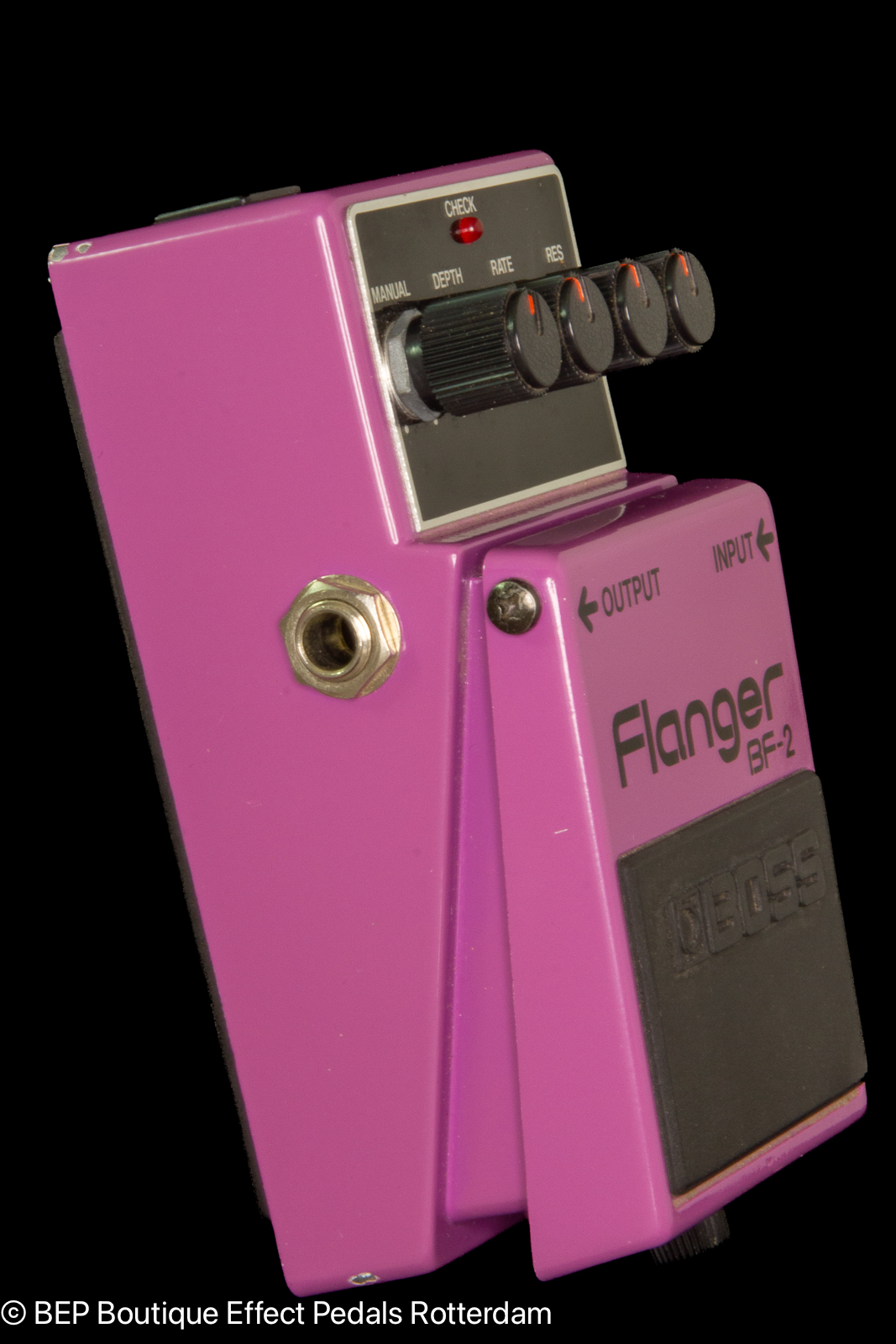

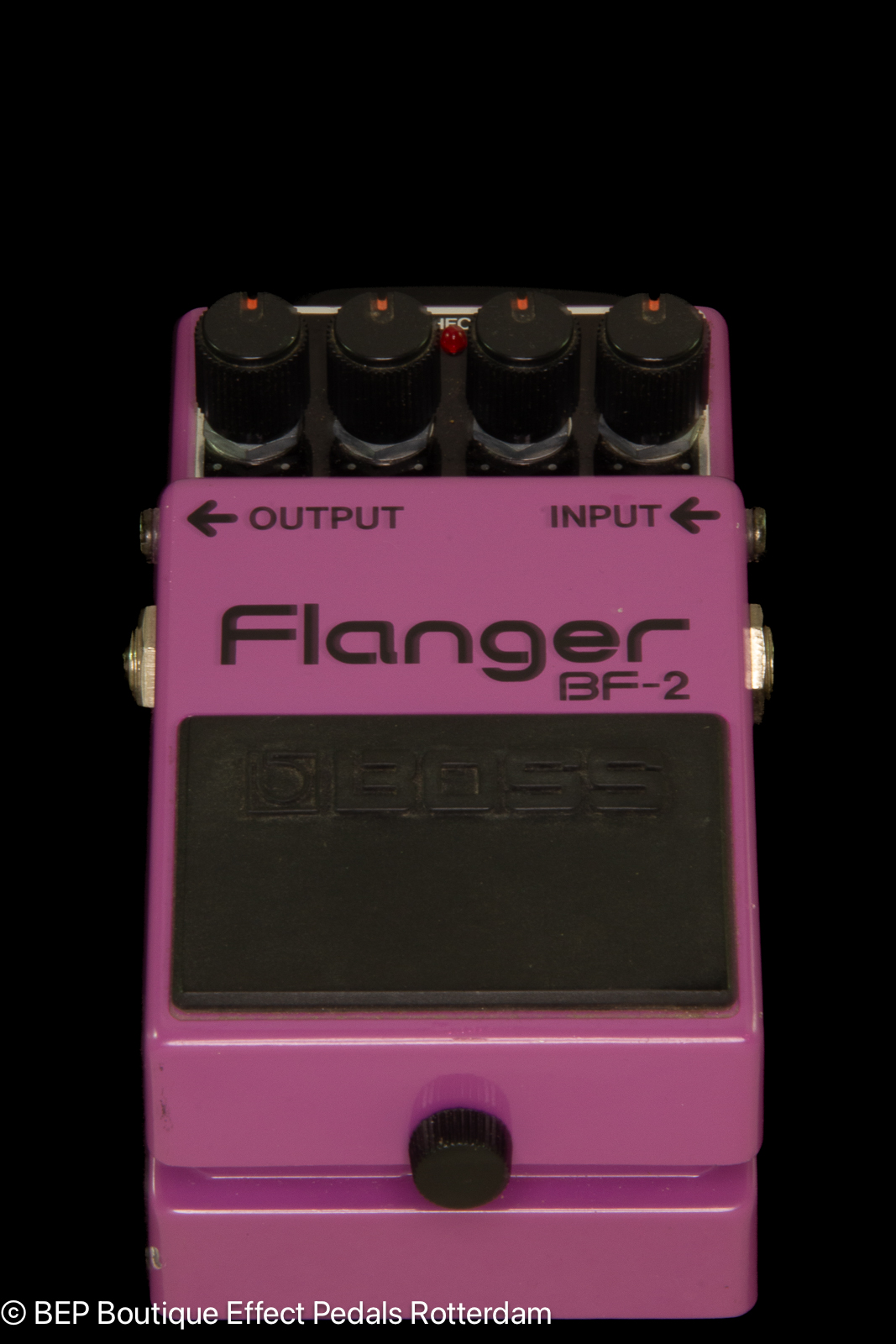

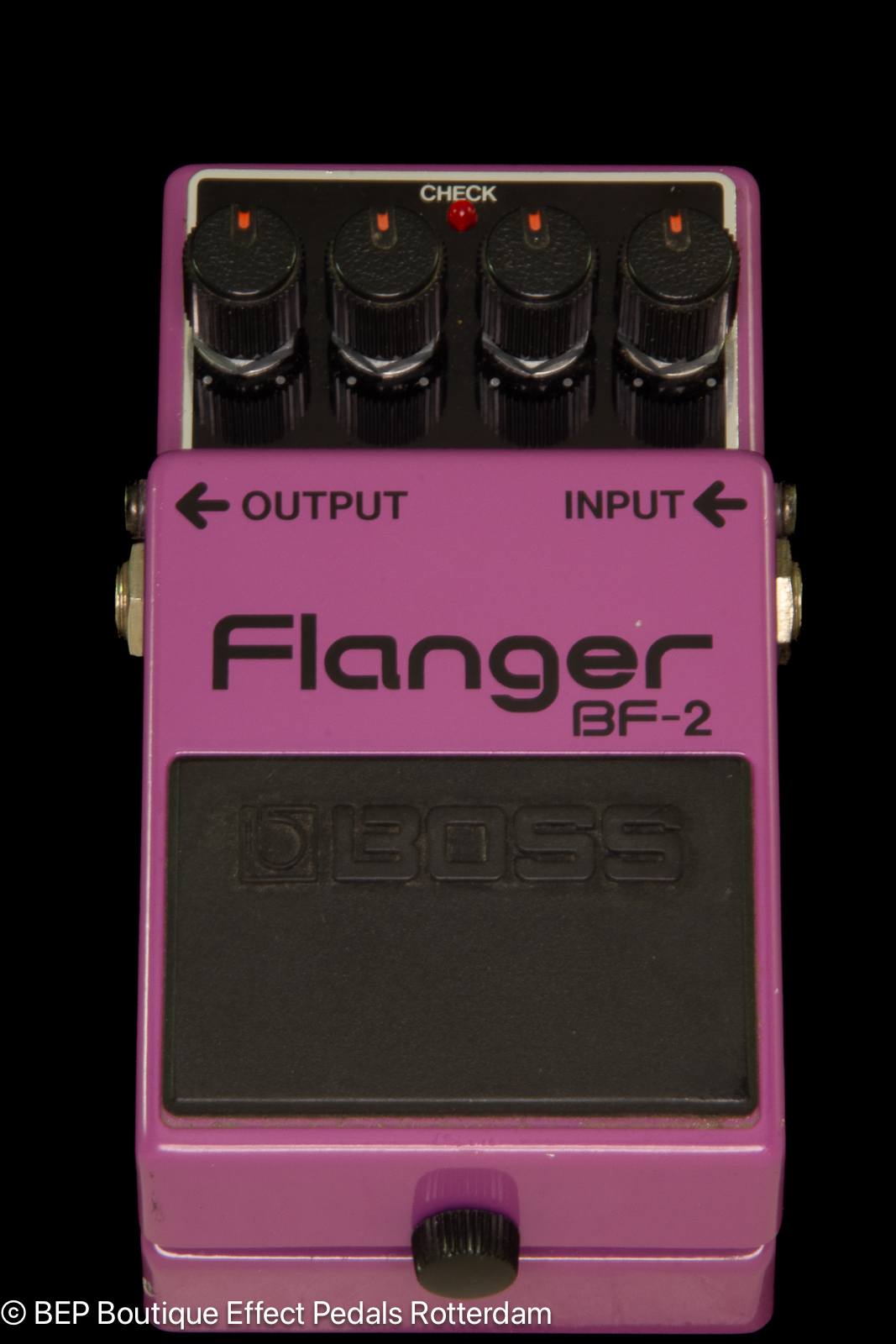

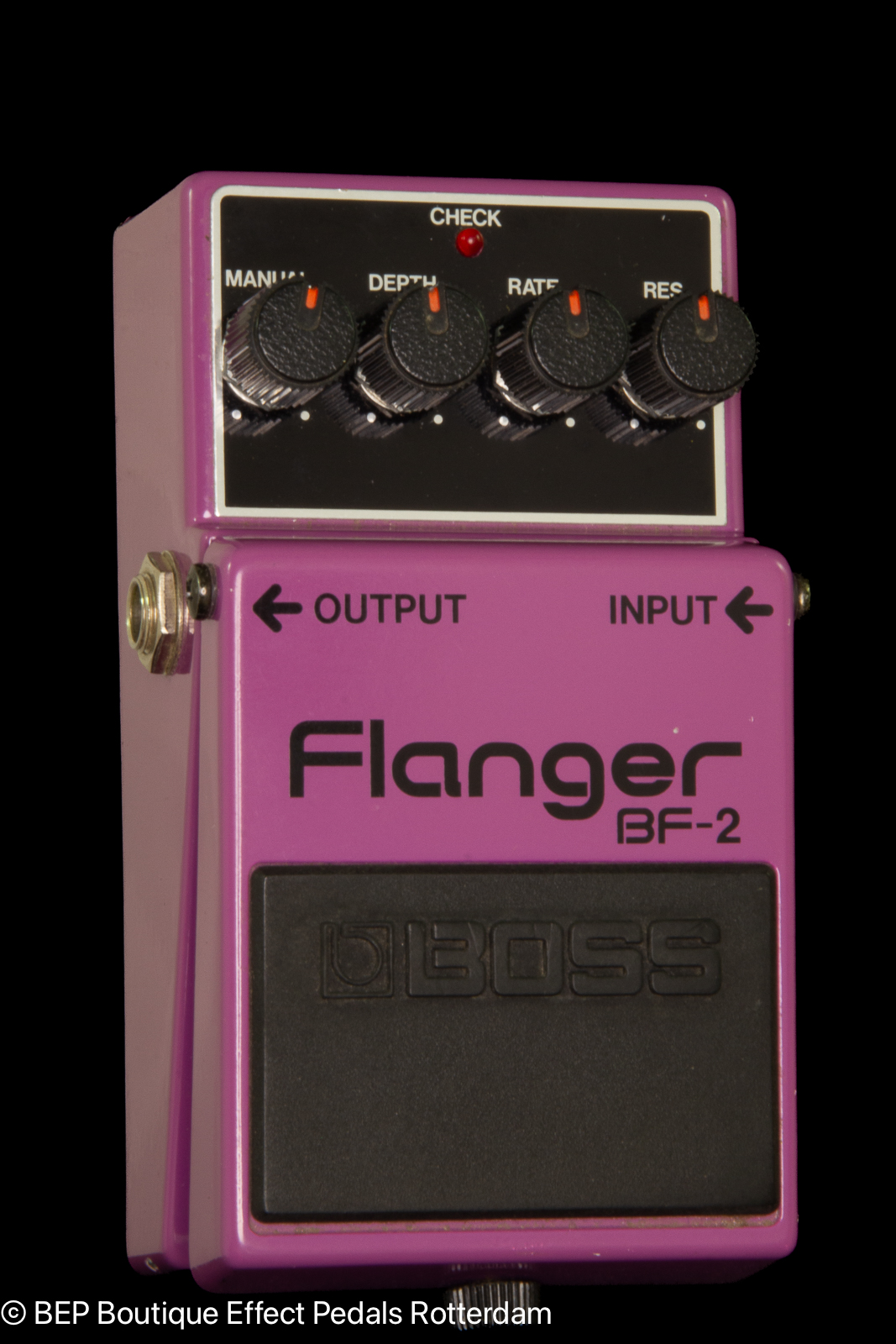

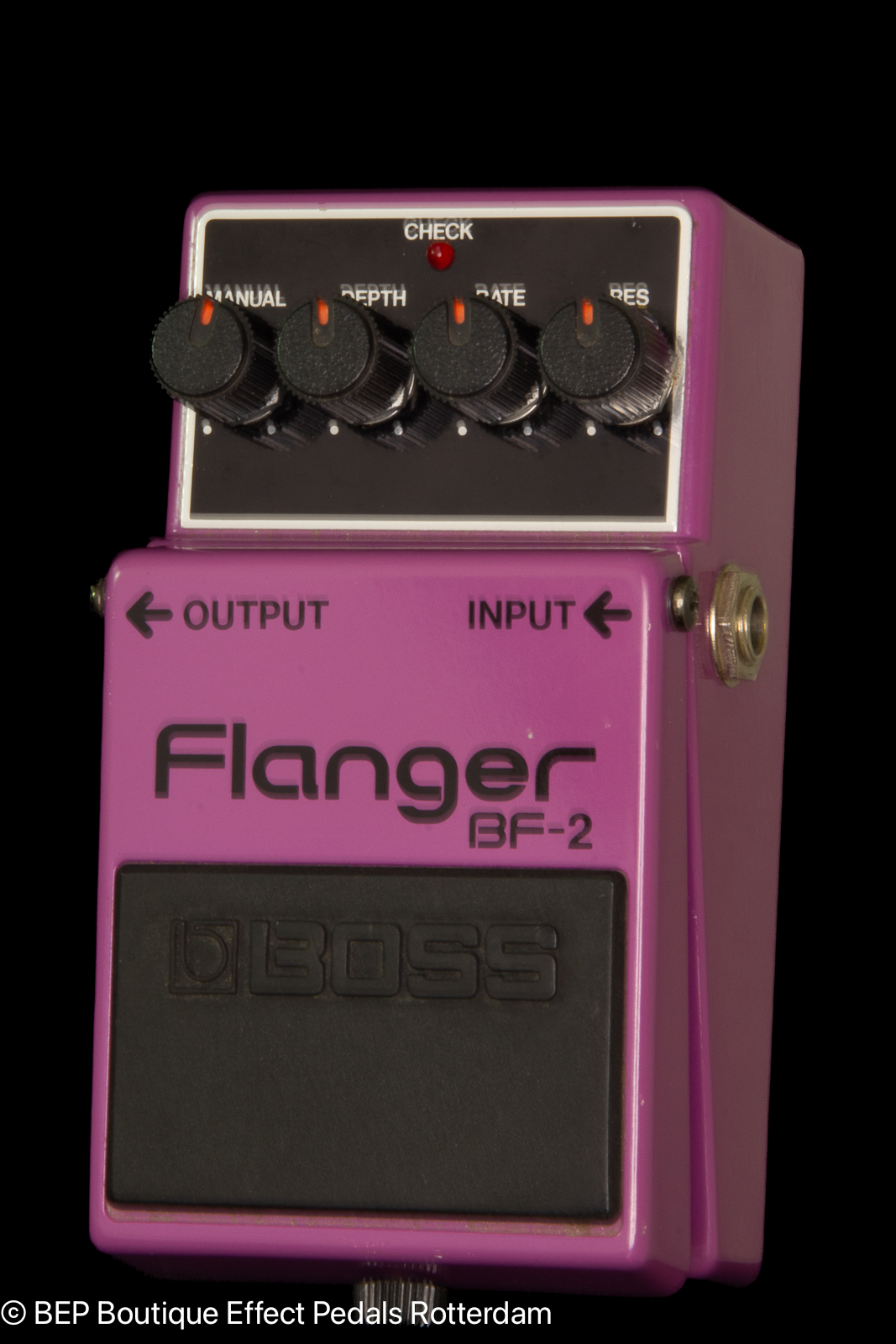

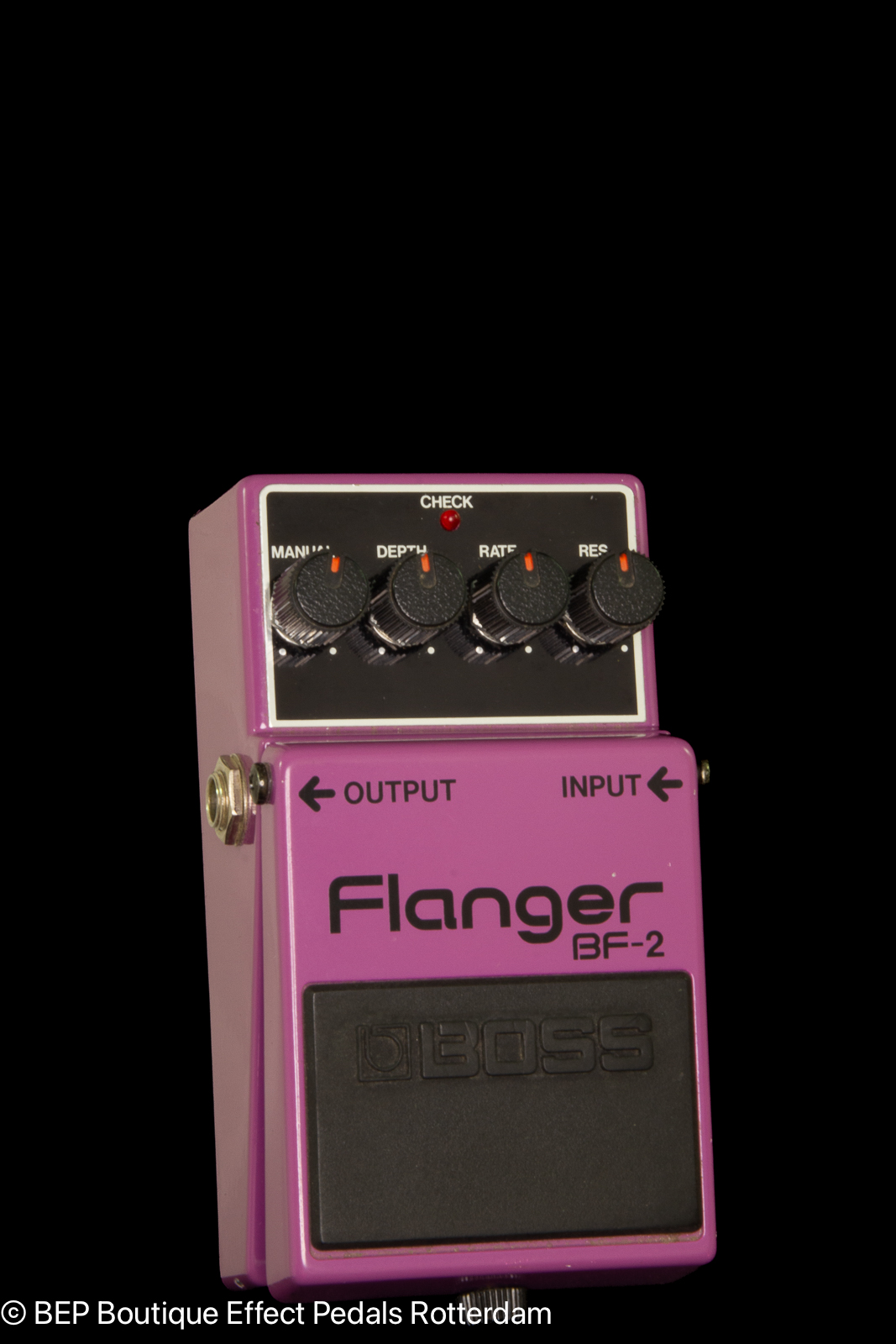

Boss BF-2 Flanger in excellent condition. Thoroughly tested and in perfect working order.
A similar Boss BF-2 was used during the recording of the massive worldwide 80's hit song " A Forrest " by the Cure
In 1980 the BF-2 replaced the BF-1. The two pedals have the same controls but the older pedal didn't have the compact pedal case and a replacement was needed. The BF-2 has been around for a long time and is one of the most commonly used flanger pedals.
Version differences
The BF-2 exists in both metal screw and plastic screw versions.
The earlier versions had all black knobs. These where later changed to the white top knobs. The change took place 1990, very close to the same time that production was moved to Taiwan
There may be some BF-2's in pink. This was the original colour choice, but it was changed to purple in the last minute. Whether some pink ones exists out there is uncertain.
The BF-2's design remained virtually unchanged through its more than 20 year lifespan. The TL022CP opamp was replaced with the Sharp IR9022 opamp at some point but apart from that, the ciruit remained unchanged.
Label differences
No pedal has had as many different labels as the BF-2. From its birth in 1980 the label was black. It was changed to green in 1984. When production of the BF-2 moved to Taiwan 1990, the label kept its colour but was reprinted with the new country of origin. In 1994 the label was changed to orange. The CE-2B is the only other pedal to have use the orange label. Orange became pink in July 1997 and the final change happened in 1999 when the dark gray label was introduced.
Specifications
Controls: Manual, Depth, Rate, Res
Connectors: Input, Output, AC Adaptor
Current Draw: 15 mA (DC 9V)
Weight: 400 g (15 oz.)
Input Impedance: 470 kOhm
Residual Noise Level: -95dBu (IHF-A)
Recommended Load Impedance: 10kOhm or greater
Delay Time: 1 ms ~ 13 ms
LFO Speed: 100 ms ~ 16 s
Recommended AC Adaptor: ACA or PSA Series (depending on production year)
Labels
Black - Made In Japan
Green - Made In Japan
Green - Made In Taiwan
Pink - Made In Taiwan
Orange - Made In Taiwan
Dark Gray - Made In Taiwan
The BF-2 was sold from June 1980 to December 2001.
