Diamond / Memory Lane 2 SOON OUT OF PRODUCTION / 2014 / Effect
|
End of life notice: the Memory Lane 2 is unfortunately nearing the end of it's lifespan. The supply of NOS Panasonic MN3005 chips we use is becoming very limited and very expensive. Luckily, we've managed to stockpile a modest supply which will allow us to continue building Memory Lane 2 for a short time but when they're gone... they're gone! FOUR IN STOCK AND THEN THEY'RE GONE!!

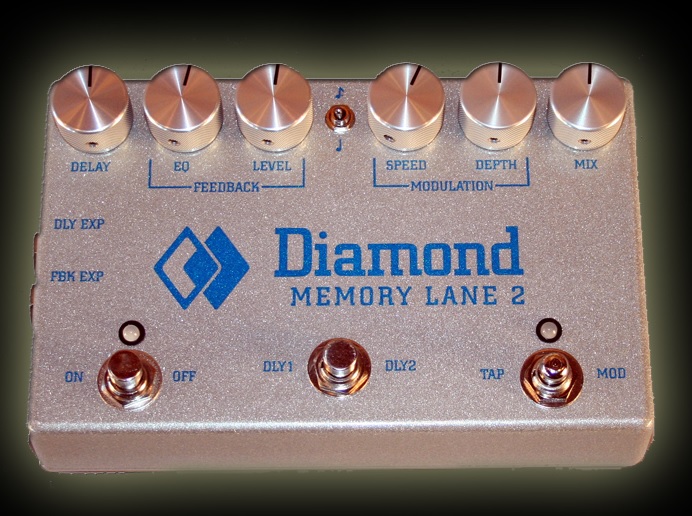

Diamond Memory Lane 2 - the evolution of analog delay.
The Memory Lane 2 expands on the innovations of the original Memory Lane offering several new features requested by players and a new twist that further bridges the feature gap between analog and digital delays while retaining the warmth and unique sound of bucket brigade delay devices in an all analog signal path.
With this newly revised version of our highly acclaimed analog delay pedal players now have the ability to control delay time via an expression pedal input, footswitch between two independent delay times: one set via the Delay knob, the other set using the tap tempo footswitch function. In addition, we've added a dotted 8th note setting for producing 'U2 style' rhythmic delays.
Memory Lane 'Upgrades' - We've been asked a lot about upgrading the original Memory Lane pedals to Memory Lane 2 specification. Unfortunately this isn't possible as the internal layout is different between the two pedals- if you look inside the original you'll see that a large section of the PCB is located where the DLY1/DLY2 footswitch is on the Memory Lane 2. It isn't physically possible to mod the original to the new version.
Feature List:
- 550 ms approx analog delay time using
2 NOS MN3005’s running at 15V
- expression pedal input to control analog delay time
- tap tempo footswitch control of analog delay time, with dotted 8th note setting for rhythmic delays
- footswitch between 2 completely independent delay times: one set using tap tempo, one set using Delay knob
- vibrato modulation depth and speed controls
- tilt EQ in delay / feedback path provides subtle control
over frequency spectrum of repeats (from increasingly
dark repeats to flat to increasingly bright repeats)
- 'kill-dry' delay only output for amplifiers with
parallel effect loops
- inserting cable into delay only output jack automatically
removes delay signal from mix output giving separate
direct only and delay only outputs
- true bypass operation for mix/direct output
- pristine signal paths using premium opamps,
polypropylene caps and metal film resistors
- expression pedal input to control feedback level
- ability to use standard 1/4" stereo to two 1/4"
mono insert cable in expression pedal input to insert
an effect or chain of effects into the feedback loop
(can also be used to insert a standard volume pedal
as feedback control)
- LED flashes for visual feedback of delay time
- self-oscillating feedback path with ability to shape
via feedback EQ in realtime
- analog voltage supply internally regulated to 15V for
low noise operation and increased headroom in line level
effect loops
- rugged genuine Hammond aluminum diecast enclosure
- DC adapter included
