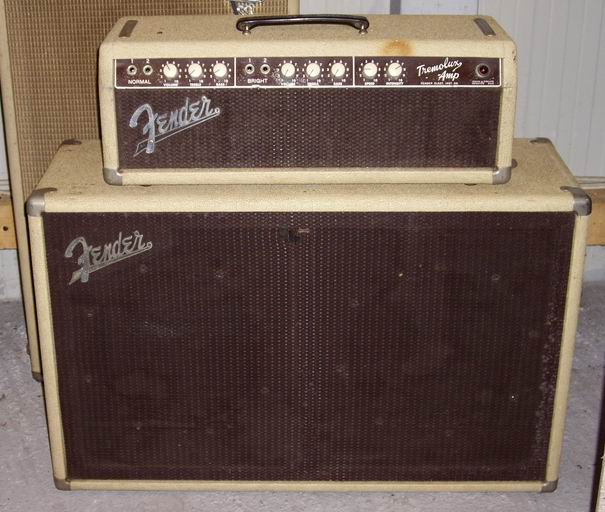

Fender / TREMOLUX / 1962 / Blonde Tolex / Amp
|
1962 Fender Tremolux Head Blonde Cover,MODEL 6G9-B TUBE RECTIFIER, Speckers 2x10" CTS EX+ code Am141
Tremolux 6G9, 6G9-A, 6G9-B (blonde)
00100 to 01000 - 1961
00900 to 04200 - 1962
04200 to 05900 - 1963
Model/Circuit Number: 6G9, 6G9-A, 6G9-B
Years of Production: 1961 - 1963
Era: Blonde
Configuration: Piggyback
Controls: Brown forward facing w/ white labels, controls numbered 1 - 10
Knobs: White round, unnumbered
Faceplate
- Front: Bright: In, In, Vol, Treb, Bass - Normal: In, In, Vol, Treb, Bass - Speed, Intensity - Pilot Lamp

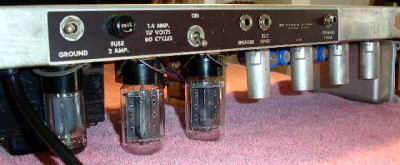

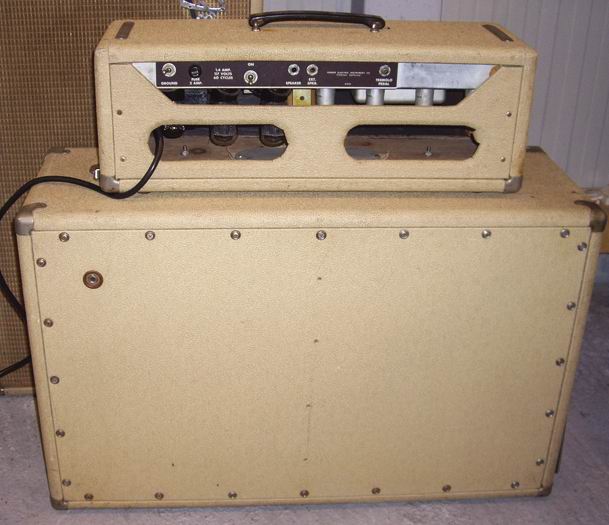

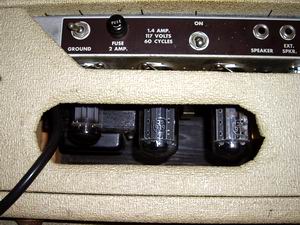

- Rear: Ground Sw, Fuse (2A), Power Sw, Standby Sw, Speaker Jack, Ex. Speaker Jack, Tremolo Jack
Cabinet
- Dimensions: Head: 8 x 23 x 8 3/8, Cabinet: 17½ x 27 x 11½
- Hardware: Medium Chassis Straps 4 5/8''
- Handle: Brown plastic Strap
- Feet: Glides
- Corners: Corner Protectors
Covering Material
- Tolex/Tweed: White Tolex
- Grill Cloth: Maroon (61-62) or wheat (62-63) grill cloth
Logo: Grill mounted, flat, chrome & black, script

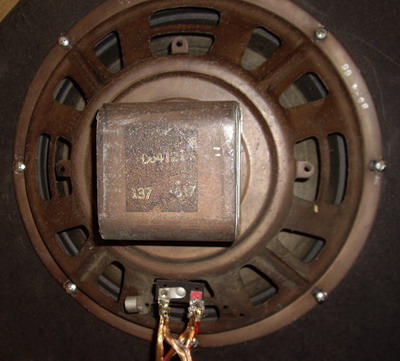

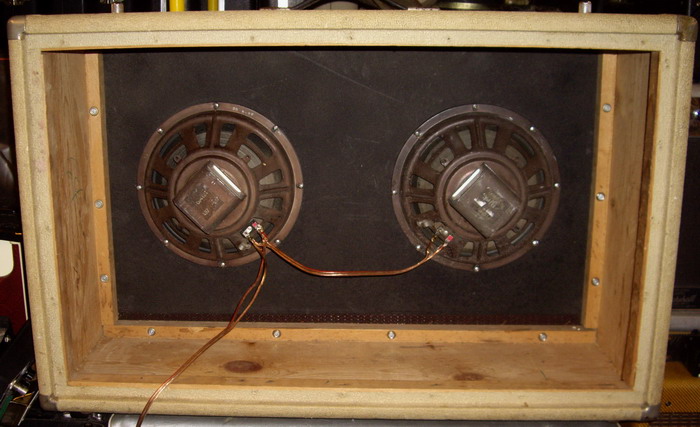

Speaker:
- Size: 6G9, 6G9-A: ported tone ring, 1 x 10''/8 ohms 6G9-B: sealed, 2 x 10/4 ohms (8 ohms each in parallel)
- Impedance: 8 ohms ; 4 ohms 2 x10" CTS
Effects: Tremolo
~Watts: 30-35 watts

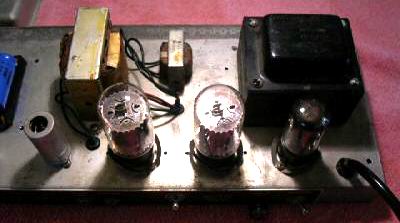

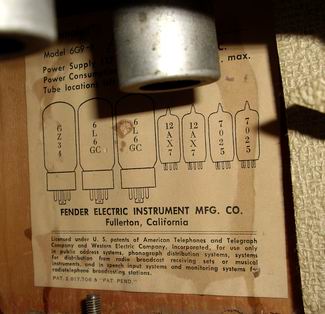

Tubes
- Pre amp: 7025
- Power: 6G9: 2 x 6BQ5 ; 6G9-A, 6G9-B: 2 x 6L6GC
Bias: Fixed Bias, Nonadjustable
Rectifier: GZ34
Comments: Some early Tremolux cabs were fitted with a 1 x 12" baffle.
