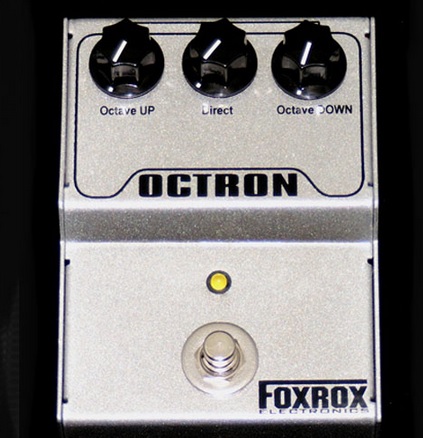

Foxrox / Octron / 2014 / Effect
|
OCTRON is all analog, it's not a digital pitch shifter. You won't get that cheesy harmonizer sound. Instead, it's an organic analog effect that responds to your playing style/technique. And takes on a new life when you put it though other effects and crank it up! Octave up, down, clean with a little of each mixed... you can dial in just a hint of octave or you can make OCTRON your octave monster! (check out the clip below).
Octave Down - It's an octave divider in the tradition of Mutron/BOSS OC2/DOD Octoplus/etc... It tracks your dynamics and has more pre-divide gain and filtering. The result is probably the best tracking you'll ever get from an analog octave divider. Ultimately the tracking is most dependent on playing technique. Articulate playing tracks well, sloppy playing doesn't.
Octave up - It's a high gain circuit that uses a pair of germanium diodes to get the octave doubling effect. There's an internal drive/gain trimmer and a tone trimmer, so you can dial in octave sounds that range from pseudo-clean to screaming and bright. The upper octave is present at all parts of the neck, but it becomes most prevalent as you go up the neck on the high strings. Up around the 10th fret and higher you can get a pure upper octave.
Other features:
True bypass with LED
9 Volt battery operation
External power input - 2.1mm, tip negative
Internal Settings Octave
UP MODE
There are two modes, Mode 1 and Mode 2.
The mode is selected by the black switch - move it to the position you desire.
Mode 2 is the default setting.
Mode 1 - This is great for the type of sounds associated with many vintage Octave-up units (Octavia). In this mode you can get many strange distorted overtones, similar to a ring modulator as well as a sweet upper octave overtone.
Mode 2 - By rolling off high frequencies before the octave doubler, Mode 2 delivers a bold, pure analog upper octave. No need to role your GTR tone back for better octave sounds.
Octave DOWN tone - This trimmer lets you dial between two different resonant tones.
Full clockwise - The bottom end is emphasized producing a full, fat octave down tone. Great for clean tones, mixed with clean guitar for the bass/guitar sound.
Full counter clockwise - Midrange is boosted. Better for adding a lower octave note with- out rattling the speakers. Also great for feeding a distortion or overdrive pedal.
Octave UP Drive - At Minimum there's very little sustain and gain. Around 1/3 to center is the normal setting. At Maximum you get the most sustain. Note about Octave UP - Analog upper octave is a product of distortion, there is no way to get a "clean" tone as one might expect from a digital pitch shifter.
Octave UP tone - Controls how bright the Octave UP tone is. At max, you may experience feedback and whistling under high gain settings (back it off). Normal setting is around cen- ter. It's a smooth treble roll-off that lets you dial in an upper octave sound that's not shrill, like many other octave-up effects.
