Suhr / ISO Boost / Effect For Sale

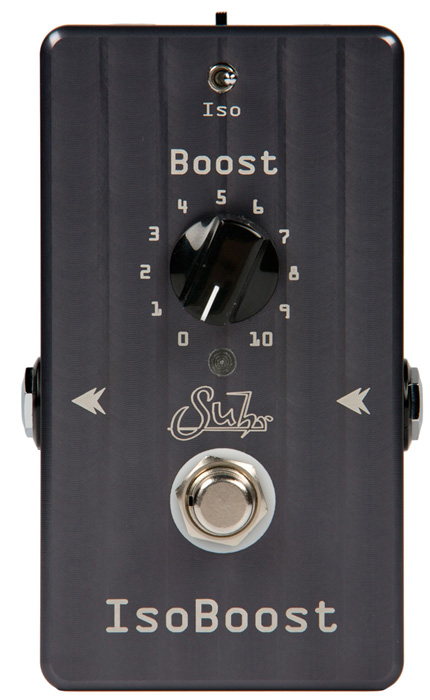

OVERVIEW ISO Boost™ incorporates a clean transparent boost, as well as a transformer isolated buffered signal to drive long effects chains. The Iso Boost is the ultimate boost pedal and line driver that expands the range of your tube amplifier. ? Iso Boost features an easy to tweak layout which include a Boost control and a two position Iso (Isolation) switch. CONTROLS Boost: Adjusts the amount of boost from the circuit, from Unity (0dB) to +20dB of gain. ISO (Isolation) Switch (two position): Activates a transformer to isolate the output and eliminate ground loops between amplifiers and effects. Left: Isolated transformer, buffered output Right: Non-isolated, buffered output Note: Iso Boost is always buffered. BATTERY MONITOR The internal 9V battery is monitored at both power up and during use. The user will be alerted when the battery voltage becomes low. When the battery becomes too low to reliably operate the pedal, True Bypass is activated. SPECIFICATIONS: Input Impedance: 1M ohm Output Impedance: 600 ohm / 10k Ohm Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm Operating Voltage: 4V to 18V (nominal 9V) Maximum Voltage: 20Vdc Reverse Battery Protection: yes Over Voltage Protection: yes Current Consumption: 8mA Estimated Battery Life: 75 – 100 hours of continuous use Dimensions: 2.50” Width x 4.50” Depth x 1.25” Height Weight: one pound FxLink Connector: 1/8” FxLink max Voltage: 3.3Vdc Shield ? Tip: Activate on/off ROHS Compliant: Yes Agency Approvals: N/A
